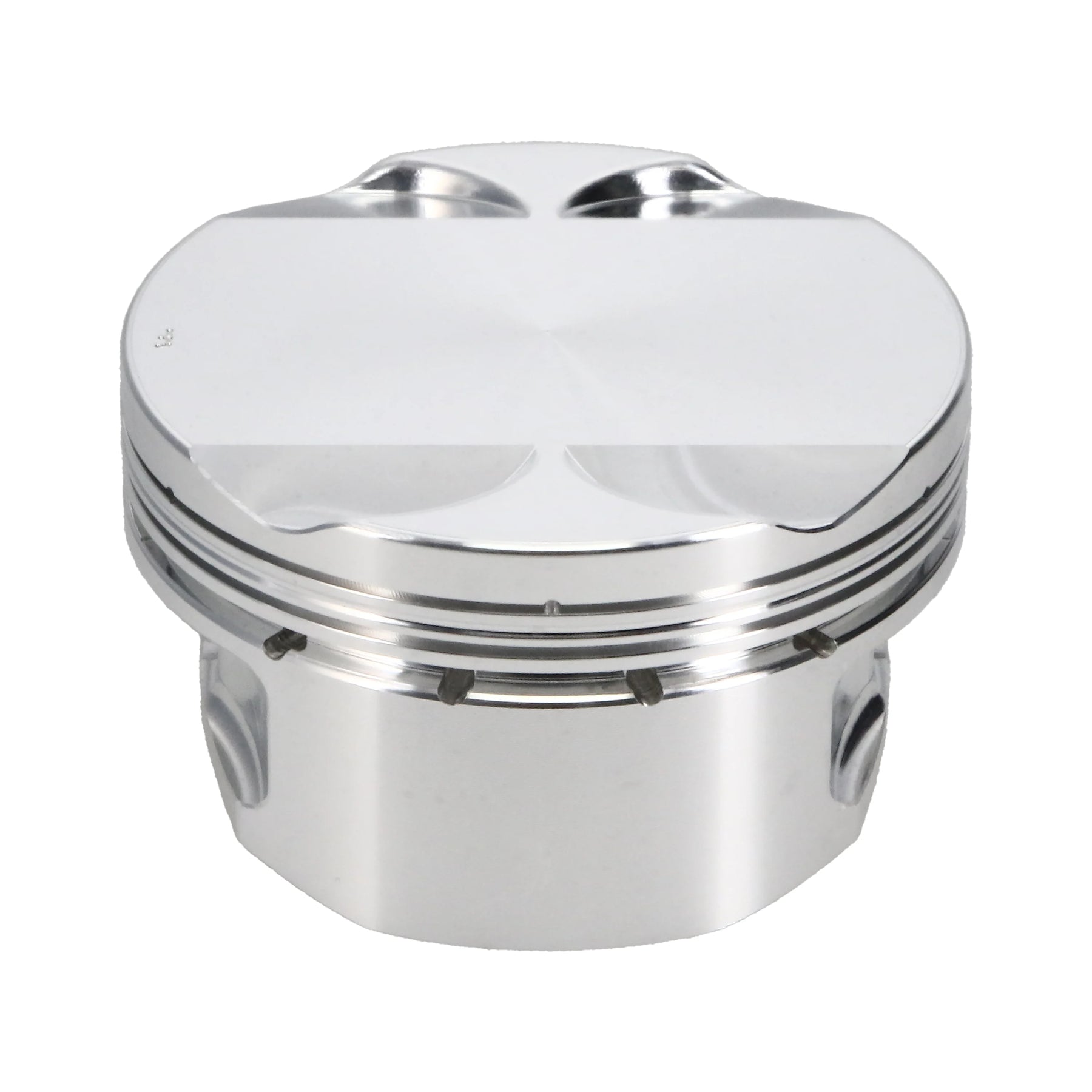

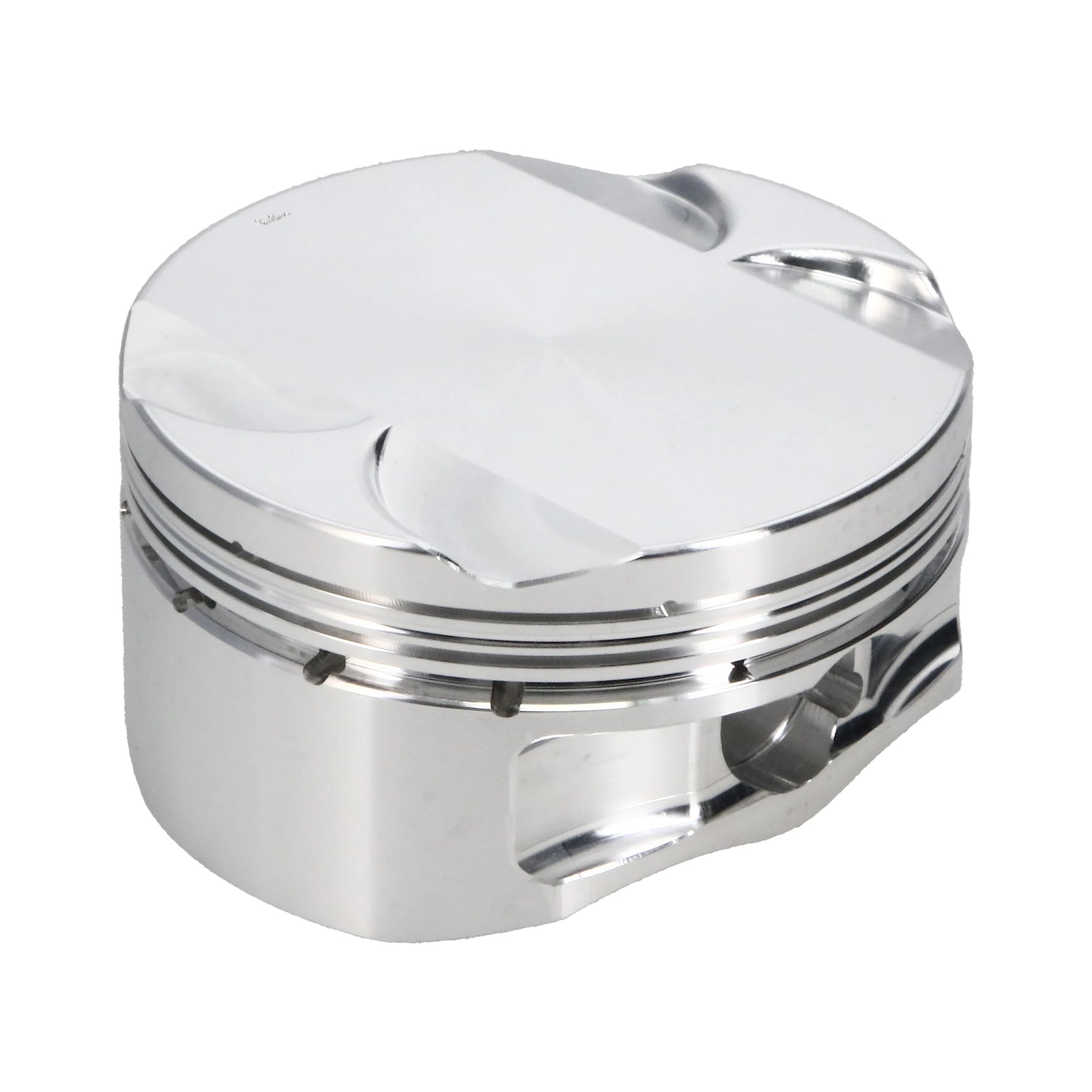

Ecotec Forged piston set LE5/LE9
Regular price$716.01
/
- Free worldwide shipping
- Low stock - 3 items left
- Backordered, shipping soon
Diamond gas ported pistons.
Wrist pin upgrade available, recommended for High RPM applications or power adder.
| Product Market |
Sport Compact |
|---|---|
| Bore Diameter |
88.00 MM |
| Compression Height |
1.092 IN |
| Piston Volume |
-2.40 CC |
| Piston Average Weight |
312 GR |
| Ring Set Part Number |
09513465 |
| Top Compression Ring Thickness |
1.00 MM |
| Second Compression Ring Thickness |
1.20 MM |
| Oil Ring Thickness |
2.80 MM |
| Ring Set Included |
Yes |
| Oil Rail Support Included |
No |
| Wrist Pin Part Number |
H7872250200C |
| Wrist Pin Outside Diameter |
0.787 IN |
| Wrist Pin Length |
2.250 IN |
| Wrist Pin Retainer Part Number |
015126-8 |
| Wrist Pin Retainer Included |
Yes |
| Piston Series |
Ecotec LE5 |
| Product Type |
Engine Piston Kit |
| Stroke |
3.858 IN |
| Rod Length |
5.659 IN |
| Ring Set Thickness |
1.00 MM x 1.20 MM x 2.80 MM |
| Piston Quantity |
4 |
| Forging Type |
Full Round |
| Cylinder Quantity |
4 |
| VP Intake Depth |
0.140 IN |
| VP Exhaust Depth |
0.130 IN |
| Add-On |
015126-8|09513465|H7872250200C |
| Compression Ratio |
10.40 |
| Wrist Pin Dimensions |
0.787 x 2.250 |
